High Speed Full Height Access Control Turnstile Gate With Emergency - scape

Informação Básica
Lugar de origem: China
Marca: WEJOIN
Certificação: CE,ISO
Número do modelo: WJFT603
Quantidade de ordem mínima: 1PC
Preço: Negatiation
Detalhes da embalagem: CAIXA DE MADEIRA
Tempo de entrega: 10-15 dias
Termos de pagamento: EXW, CORRENTE DE RELÓGIO, CIF
Habilidade da fonte: 50pcs/semana
Descrição de produto

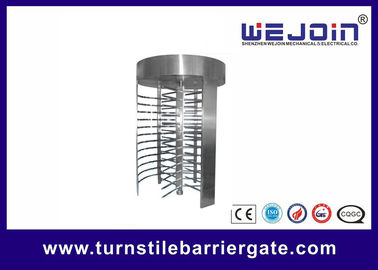

High Speed Full Height Access Control Turnstile Gate With Emergency - scape





Quick Detail:





  1. Name: Full height turnstile
  2. Feature: Emergence-scape function
  3. Certificate:CE,ISO
  4. Timel for opening: 0.2s
  5. Material : Stainless steel
  6. Voltage : 110V/220V
  7. Application: Gateway guard





Operation Place





Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control





Description:



1 Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off

2. Anti-strike function. Turnstile gate will be locked when there is no open signal.

3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.

4.  Memory Function attached in the controller

5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.

6. Compatible with several control devices such as IC, ID, magcard, bar code and so on.

7. Counting Function of the controller, LED figure display function (optional)
8.
Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
9. With standard input, output interface

10. The turnstile can also work with push button, fingerprint and face recognition access control system.





Specifications




Model
Item
WJFT601 WJFT602 WJFT603 WJFT610 WJFT611 WJFT612
Material of Housing 201 / 304 Stainless Steel
Thickness of Housing 2.00mm
Dimension of Housing
(L×W×H mm)

1630×1500×

2300

1400×1200×

2300

1630×1500×

2300

2800×1813×

2400

2150×1260×

2300

2210×1500×

2300

Length of Pole
(out of framework)
610mm 470mm 510mm 610mm 470mm 610mm
Net Weight 170kg 250kg 230kg 650kg 560kg 650kg
Max Load-bearing of Pole 80kg 30kg 80kg 80kg 30kg 80kg
 Communication Interface  Standard RS485 (D<=1200 m)
Produce Processing Laser cutting fully controlled by computer
Time for Opening 0.2 second
Frequency 50/60HZ
Transmission of Pole Digital Transmission
Driving Force of Pole 3kgs
Rotating Direction Single Direction, Double Direction (optional)
Light Indicator Direction indicating
Power Supply 220V±10%, 110V±10%
Input Interface Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity 90%, no condensation
Working Temperature 10°C~50°C
