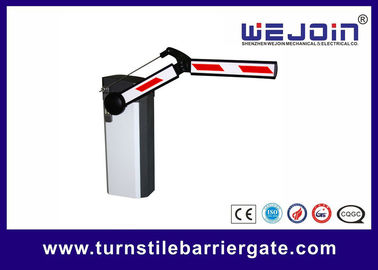

Parking Barrier Gate Vehicle Access Control Boom Barrier Traffic Control High Speed Arm Gate Barrier

Informação Básica
Lugar de origem: China
Marca: WEJOIN
Certificação: CE
Número do modelo: WJDZ820
Quantidade de ordem mínima: 1SET
Preço: USD380-420USD
Detalhes da embalagem: Caixa ou de madeira
Tempo de entrega: 3-7 dias
Termos de pagamento: T/T.
Habilidade da fonte: 6000/Month
Informação detalhada
material do motor: Liga de alumínio de fundição Dever alto: Sim
Comunique Modual: Sim Portões automáticos: Sim
Abrigo terminado: pó revestido Tempo opcional: 3s, 6s

Descrição de produto



WJDZ820

A cutting-edge automation equipment for effective traffic control and management

 Robust reliable flexible

With attractive design, this boom will reduce the operation load of the barrier gate and prolong its lifespan

Maximum boom length is 4 meters

Brand new process design makes the high strength and stainless folding arm

1. Open the gate by motor wheel when power off and automatic locking when power on

2. Balance boom running with a motor transmission of cranks and shafts

3. Remote control to operate the barrier gate

4. Auto reverses when the boom meets obstacles

5. Infrared photocells interface is available

6. Loop detector interface is available

7. Well integrated with car parking system equipments, with wire control (push button)

8. Interface for traffic light

9. Installation on both sides (left or light)

10. Auto-delay when closing (adjustable)

11. Boom with protective rubber band



Installation Changement





  Model

Item

820-11

820-13

820-16

820-23

820-26

820-33

820-36

820-46

820-56

Running time

1.5sec

3sec

6sec

3sec

6sec

3sec

6sec

6sec

6sec

Boom type

straight

90 degree folding

180 degree folding

2fencing

3fencing

Max boon length

3M

4.5M

6M

3M

5M

3M

5M

4.5M

4M

Boom dimension

25*80mm

45*100mm

Boom weight

3kg

4.5 kg

6 kg

6.5 kg

8 kg

9 kg

11 kg

7 kg

7.5 kg

Voltage

AC220V±10%, AC110± 10%

Frequency

50/60HZ

Motor voltage

220V

Power working temperature

80W

working temperature

-35centigrade~+60centigrade

Protection degree

IP44
